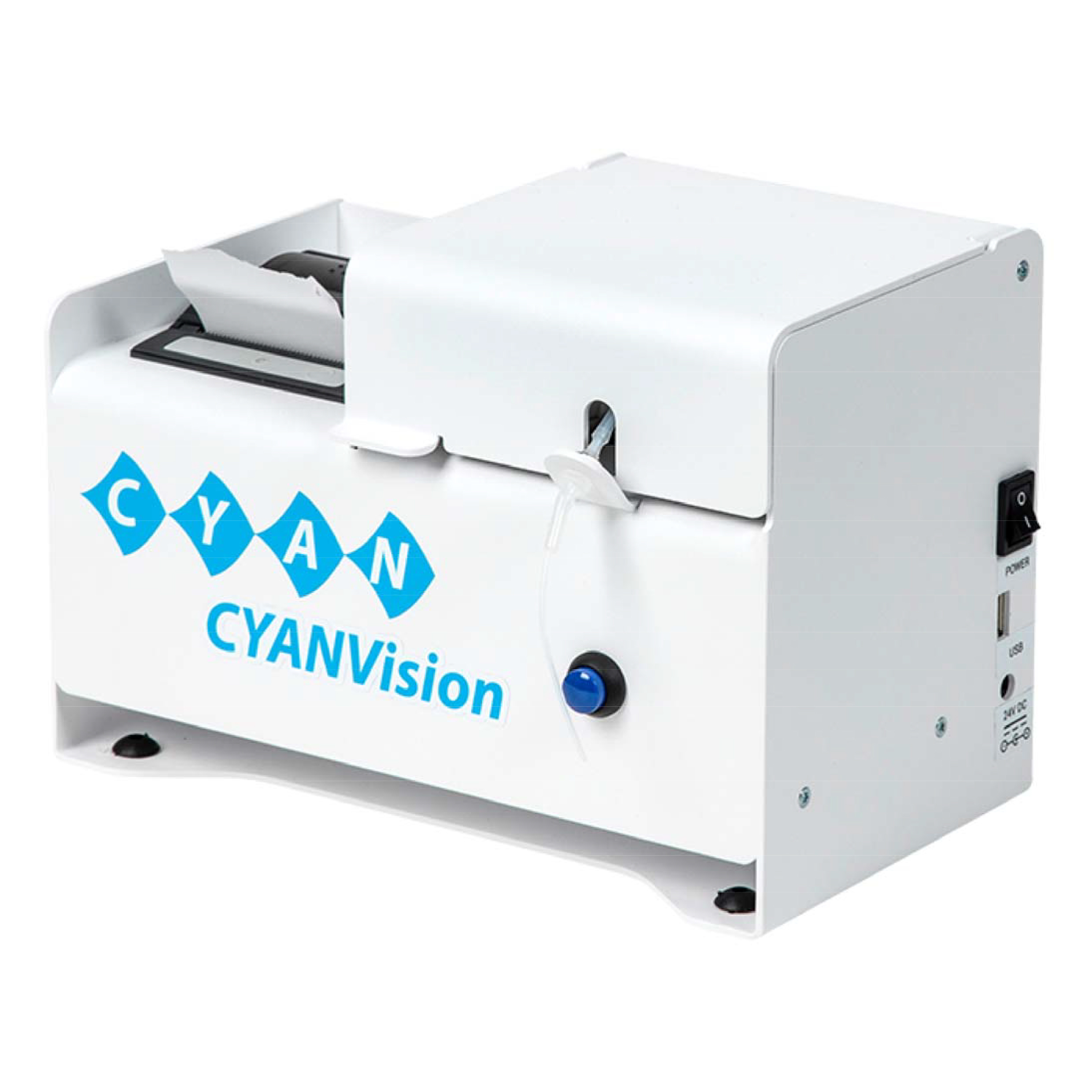

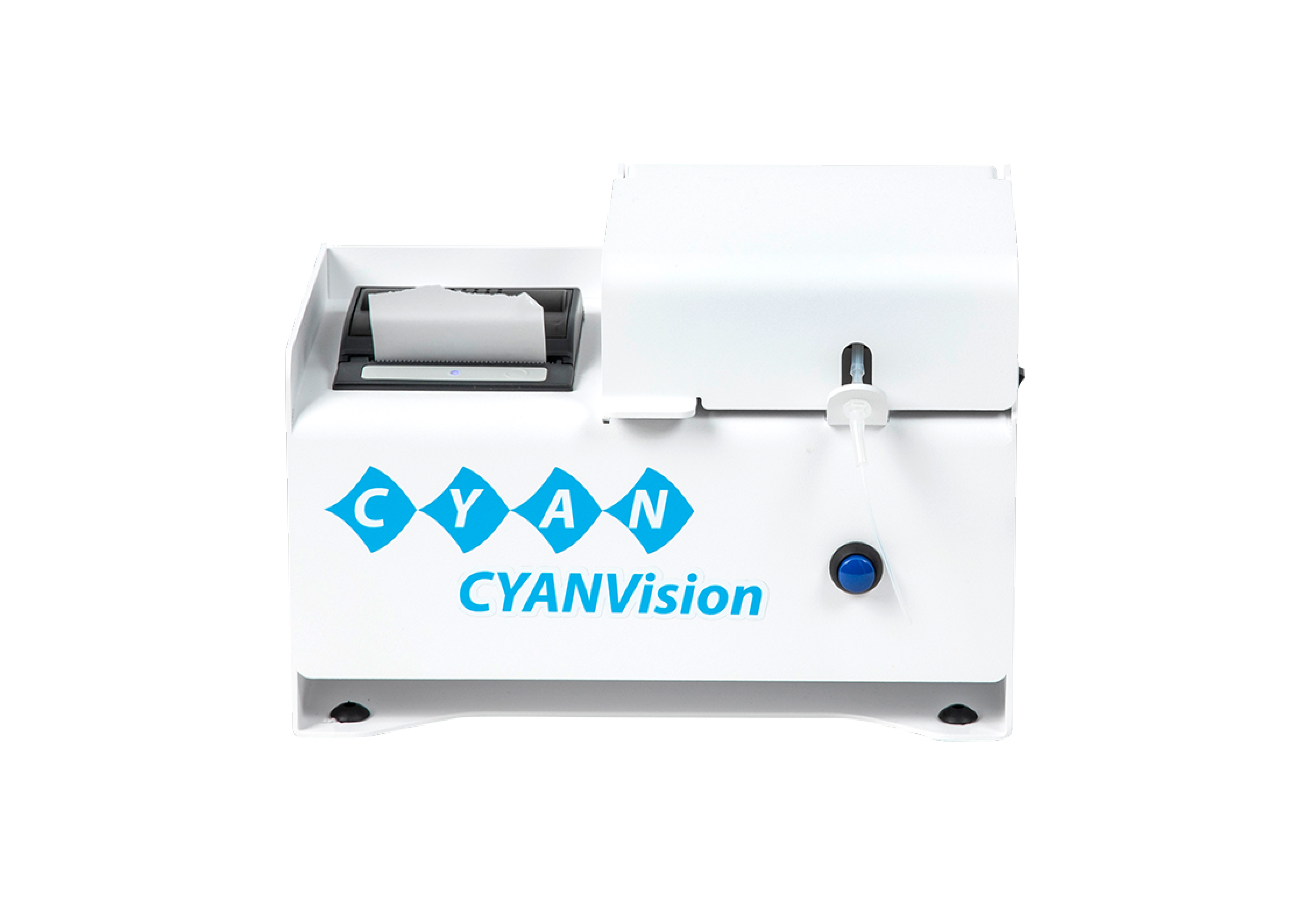

Semi-Automatic Biochemistry Analyzer, CYANVISION (Cypress)
Product Name Semi-Automatic Biochemistry Analyzer
Model Name CYANVision (CY014)
Brand Name Cypress Diagnostics
Country of Origin Belgium
Semi-Automatic Biochemistry Analyzer – CYANVision
CYANVision (CY014) is a semi-automatic biochemistry analyzer created to excel in clinical performance, user convenience, and robustness. It uses light-emitting diodes (LEDs) instead of a conventional halogen lamp to deliver extraordinary measurement performance and to avoid lamp replacement costs. The operating system provides guidance and advice to help deliver precise and accurate results.
Intended use: CYANVision is an in‑vitro diagnostic (IVD) medical device for professional use, for the quantitative determination of biochemical substances and other characteristics in biological samples in clinical and veterinary diagnostics.

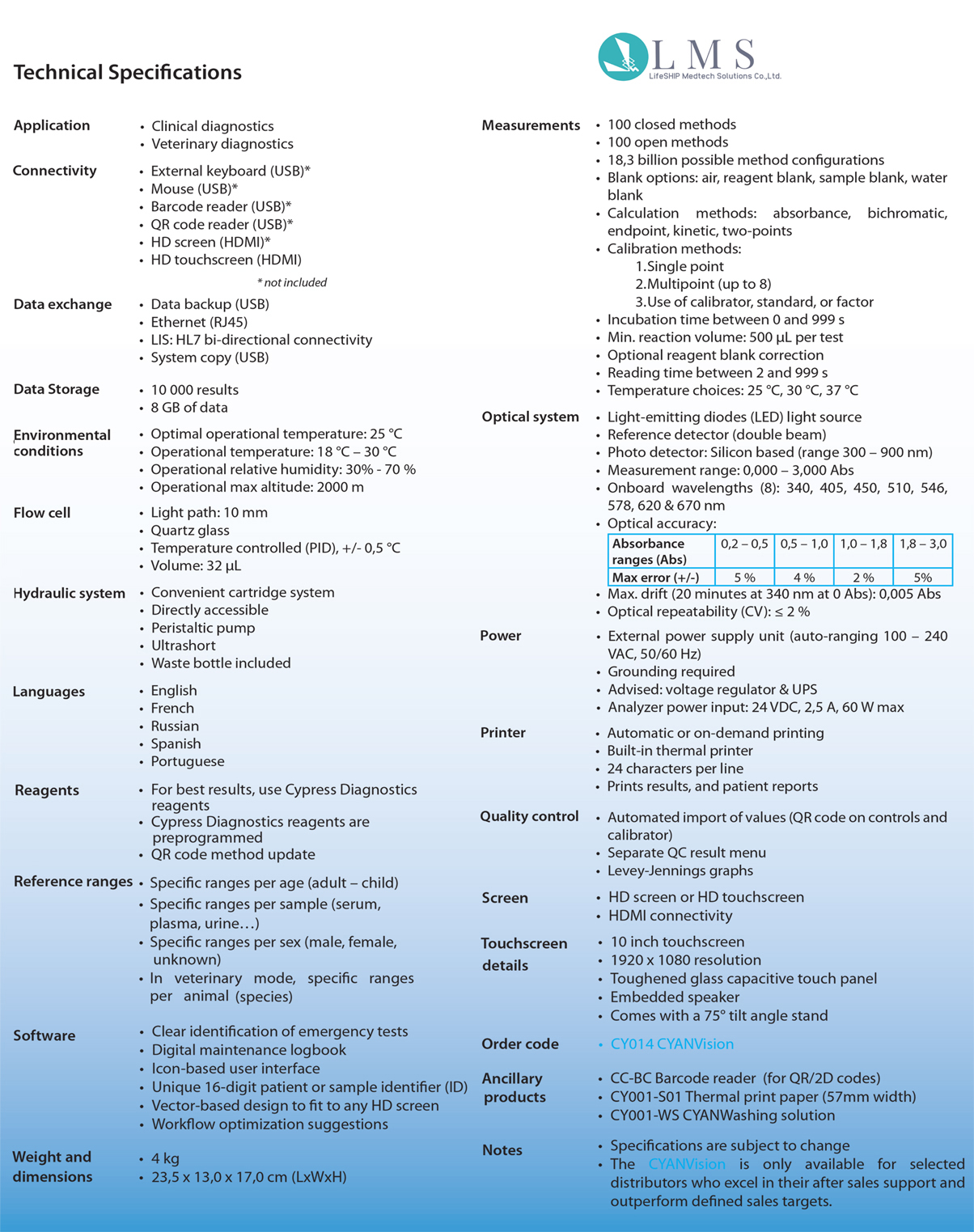

Product Description – Overview
| Feature | - Description |
| Product Type | - Semi-automatic biochemistry analyzer (IVD device) |
| Optical System | - LED-based photometry (8 LEDs; 340, 405, 450, 510, 546, 578, 620, 670 nm) |
| Lamp Replacement | - Designed for 100,000 tests without lamp replacement |
| Flow Cell | - Quartz glass, 10 mm light path, temperature controlled (PID) ±0.5 °C, 32 µL volume |
| Touchscreen | - 10-inch touchscreen, 1920×1080, capacitive toughened glass; 75° tilt stand |
| Data Storage | - Up to 10,000 results; 8 GB data |
| Connectivity & LIS | - Ethernet (RJ45); HL7 bi-directional LIS; USB data backup; external HDMI display options |
| Workflow | - Unique worklist (free included tool); test counter; scanning of control & calibration values |

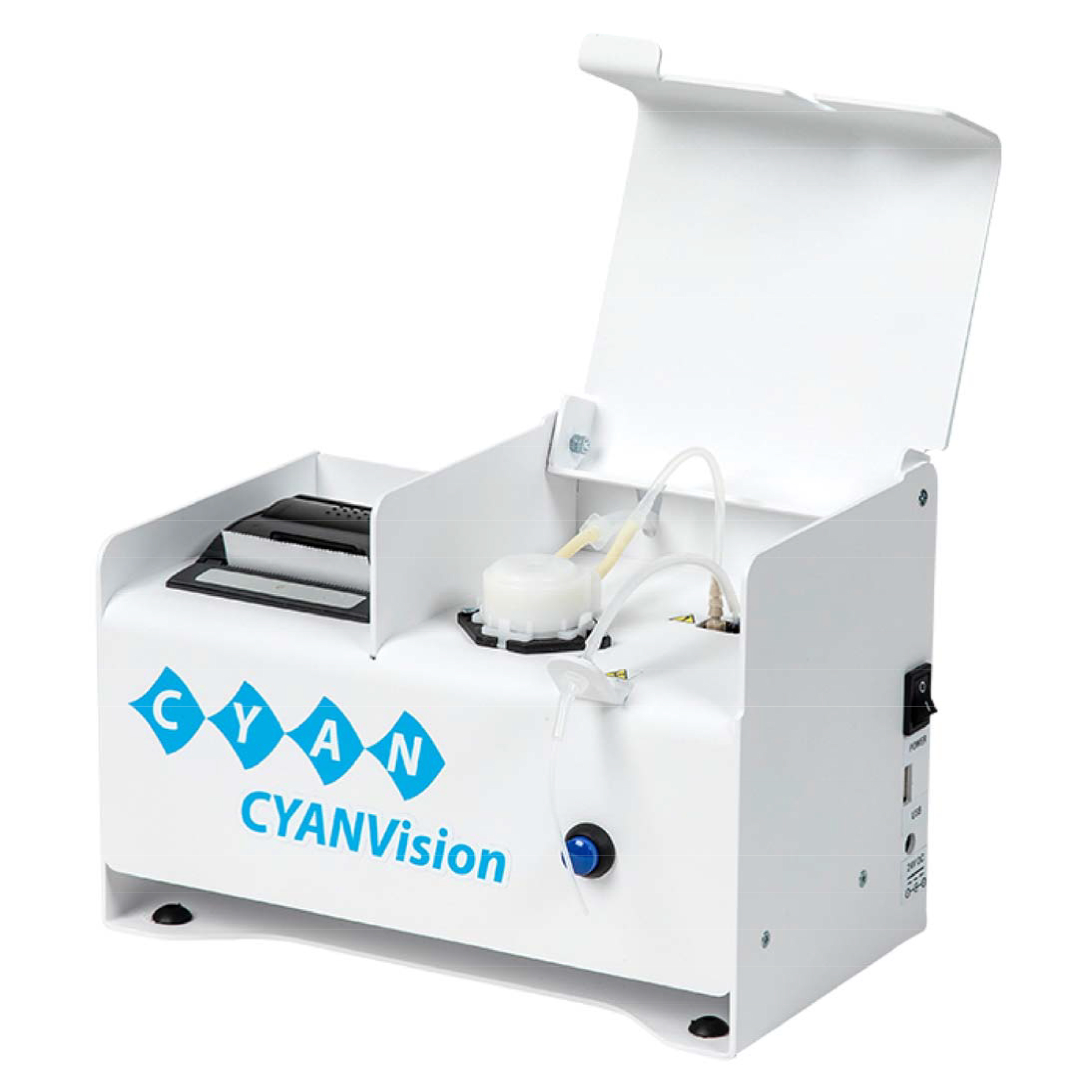

| Hydraulic System | - Directly accessible cartridge system; peristaltic pump; ultrashort fluid path; waste bottle included |
| Applications | - Clinical diagnostics and veterinary diagnostics |
| Languages | - English, French, Russian, Spanish, Portuguese |
Key Advantages (Competitive Differentiators)
• LED photometry (no halogen lamp) designed for 100,000 tests without lamp replacement
• Unique integrated worklist (free tool) to streamline workflow and support shorter turnaround time
• Bi-directional HL7 LIS connectivity plus Ethernet/USB data exchange options
• Temperature-controlled quartz flow cell (PID) to support measurement stability
• Directly accessible cartridge-based hydraulics for simplified servicing and troubleshooting
• High-resolution touchscreen interface to support user convenience
Regulatory & Quality
• IVDR (EU) 2017/746: EU Declaration of Conformity available for CY014 (Class A)
• SRN: BE-MF-000000033
• Basic UDI-DI: 54040351CY0145V; UDI-DI: 05404035100288
• Registration N°: BE-CA01/1-06470-00044-IVD
• ISO 13485:2016 certified quality management system (manufacturer)
• Professional use only (IVD)
